TB-5.0-P-2P2-GY
PCB terminal block; angled 90°; 5mm; ways: 2; on PCBs; 0.5÷4mm2
| Skupina výrobků: | Terminal blocks |
|---|---|
| Související soubory: |
Ceny
Parametry výrobku
Type of connector:
PCB terminal block
Spatial orientation:
angled 90°
Contacts pitch:
5mm
Number of ways:
2
Mechanical mounting:
on PCBs
Electrical mounting:
- screw terminal
- THT
Wire cross-section:
0.5...4mm2
Connector:
terminal
Contact plating:
tinned
Current rating:
20A
Height:
19mm
Colour:
dark grey
Rated voltage:
300V
Body material:
PBT
Connectors features:
assembling possibility
Length:
10mm
Contact material:
brass
Operating temperature:
-30...120°C
Depth:
10.5mm
Flammability rating:
UL94V-0
Connector pinout layout:
1x2

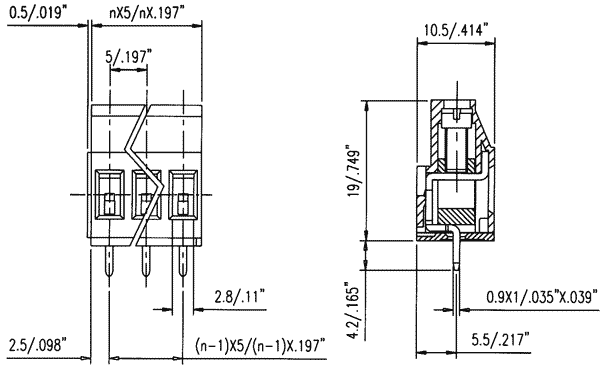

Dimensions:
Doplňková informace
Hmotnost brutto
:
0.004267 kg
