Země:
Polsko
TB-2.5-PD-3P/GY
PCB terminal block; angled 90°; 2.54mm; ways: 3; on PCBs; 0.5mm2
| product.pip.manufacturerSymbol: | AC141R-03P-2.54-GRAY |
|---|---|
| Skupina výrobků: | Terminal blocks |
Ceny
Parametry výrobku
Type of connector:
PCB terminal block
Spatial orientation:
angled 90°
Contacts pitch:
2.54mm
Number of ways:
3
Mechanical mounting:
on PCBs
Electrical mounting:
- spring clamp
- THT
Wire cross-section:
0.5mm2
Connector variant:
with lever
Connector:
terminal
Contact plating:
tinned
Current rating:
2A
Height:
12.6mm
Colour:
grey
Rated voltage:
150V
Body material:
polyamide
Stripped wire length:
11mm
Length:
10.16mm
Contact material:
brass
Operating temperature:
-40...105°C
Flammability rating:
UL94V-0
Connector pinout layout:
1x3
Soldering temperature:
250°C / 5 s

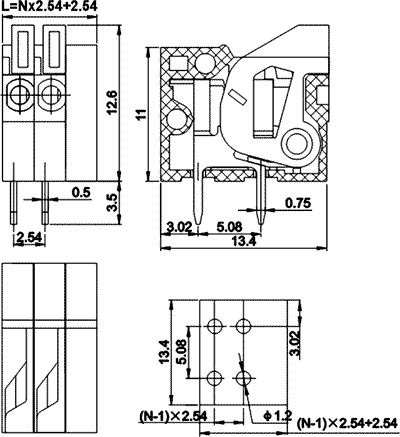

Dimensions:
Doplňková informace
Hmotnost brutto
:
0.00193 kg
