TSM202E1
Switch: toggle; Pos: 2; DPDT; ON-ON; 3A/250VAC; Leads: for soldering
| Product groups: | Toggle Switches |
|---|---|
| Related files: |
Prices
Product specifications
Type of switch:
toggle
Number of positions:
2
Contacts configuration:
DPDT
Switching method:
ON-ON
AC contacts rating @R:
3A / 250V AC
Leads:
for soldering
Operating temperature:
-25...85°C
Kind of toggle:
flat
Mounting hole diameter:
Ø6mm
Knob height:
13.5mm
Max. contact resistance::
20mΩ
Body dimensions:
13.2x12.9x9.5mm
Electrical life:
20000 cycles
Actuator material:
plastic
Body colour:
blue
Soldering temperature:
260°C / 4 s
Stable positions number:
2
Panel cutout:

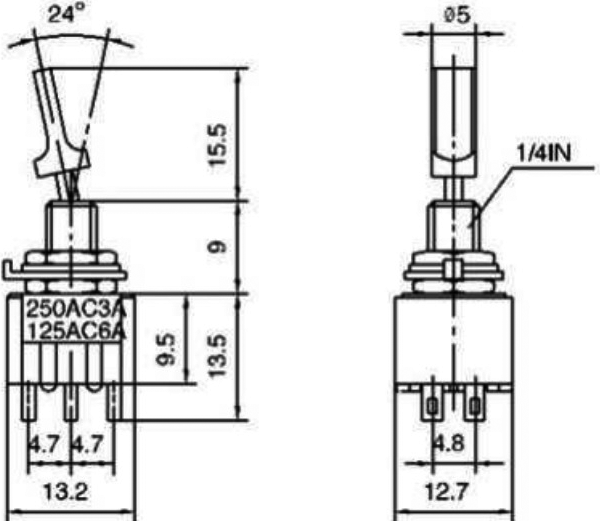

Dimensions:
Additional information
Gross weight
:
0.006 kg
