RSSM2014C3GN
ROCKER; DPST; Pos: 2; ON-OFF; 6A/250VAC; green; neon lamp; 35mΩ
| Skupina výrobků: | Rocker Switches |
|---|---|
| Související soubory: |
Ceny
Parametry výrobku
Type of switch:
ROCKER
Contacts configuration:
DPST
Number of positions:
2
Stable positions number:
2
Switching method:
ON-OFF
AC contacts rating @R:
6A / 250V AC
Key button colour:
green
Illumination:
neon lamp
Backlight colour:
green
Max. contact resistance::
35mΩ
Body colour:
black
Leads:
connectors
Leads dimensions:
4.8x0.8mm
Electrical life:
10000 cycles
Mounting hole diameter:
22x19.5mm
Button marking:
O-I
Shape:
rectangular
Operating temperature:
-30...80°C

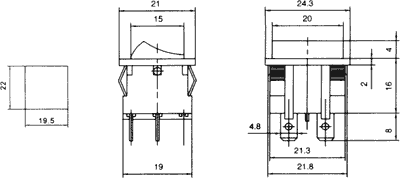

Dimensions:
Doplňková informace
Hmotnost brutto
:
0.00706 kg
