MSS-2245
Switch: slide; Pos: 2; DPDT; 0.3A/6VDC; ON-ON; No.of term: 6; THT
| Skupina výrobků: | Slide Switches |
|---|---|
| Související soubory: |
Ceny
Parametry výrobku
Type of switch:
slide
Number of positions:
2
Contacts configuration:
DPDT
DC contacts rating @R:
0.3A / 6V DC
Switching method:
ON-ON
Number of terminals:
6
Mounting:
THT
Leads:
- for PCB
- straight
Operating temperature:
-25...70°C
Body dimensions:
9x3.5x3.5mm
Min. insulation resistance:
0.1GΩ
Max. contact resistance::
70mΩ
Knob height:
2mm
Operating Force:
1.96N
Soldering temperature:
260°C / 5 s
Stable positions number:
2

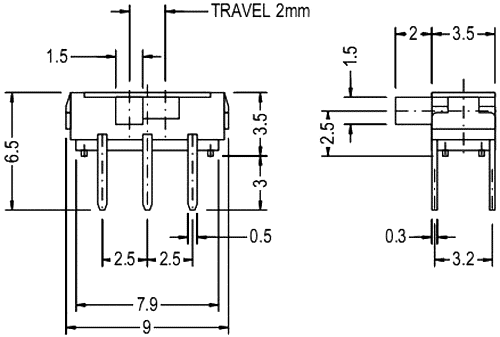

Dimensions:
Doplňková informace
Hmotnost brutto
:
0.000224 kg
